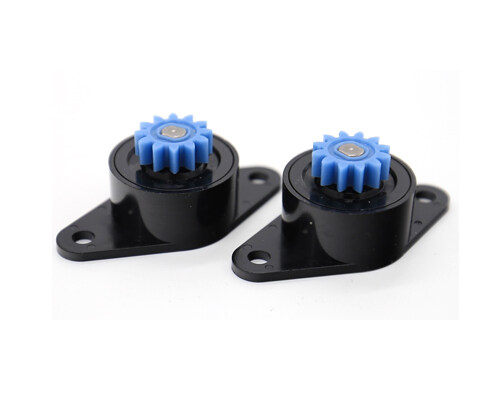

TRD-D2 rotary damper for sliding door, door soft close hinge
미닫이 문
슬라이딩 도어 풀리 시스템 버퍼 회전 버퍼 플라스틱 회전 댐퍼
sliding doors system
When the damper use in the sliding door, it will slow the speed of door closing, and make it close softly and silent. Make people safety to open and close the door. especially for children.
모델 댐핑 방향
TRD{0}}D2-501(G2) 양방향
정격 토크
( 5 0 ± 1 0 ) X 1 0 – 3 N · m
( 5 0 0 ± 1 0 0 g f · c m )
TRD{0}}D2-102(G2) 양방향
( 1 0 0 ± 2 0 ) X 1 0 – 3 N · m
( 1 0 0 0 ± 2 0 0 g f · c m )
TRD{0}}D2-152(G2) 양방향
( 1 5 0 ± 3 0 ) X 1 0 – 3 N · m
( 1 5 0 0 ± 3 0 0 g f · c m )
TRD-D2-R501(G2) 시계 방향
TRD-D2-L501(G2) 시계 반대 방향
( 5 0 ± 1 0 ) X 1 0 – 3 N · m
( 5 0 0 ± 1 0 0 g f · c m )
TRD{0}}D2-R102(G2) 시계 방향
TRD-D2-L102(G2) 시계 반대 방향
( 1 0 0 ± 2 0 ) X 1 0 – 3 N · m
( 1 0 0 0 ± 2 0 0 g f · c m )
TRD{0}}D2-R152(G2) 시계 방향
TRD-D2-L152(G2) 시계 반대 방향
( 1 5 0 ± 3 0 ) X 1 0 – 3 N · m
( 1 5 0 0 ± 3 0 0 g f · c m )
주1) 정격토크는 회전속도 20rpm, 23도에서 측정한 값입니다.
주2) 기어 형번 끝에 G2가 붙습니다.
주3) 오일 점도를 변경하여 토크를 사용자 정의할 수 있습니다.
＊Max. rotation speed 50rpm
＊Max. cycle rate 10 cycle/min
＊Operating temperature 0-50 degree

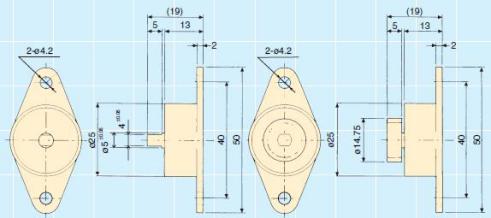

＊Weight TRD{{0}}D2 : 8.3g, TRD-D2 : 11.8g (with gear : plus 0.6g)
＊Body and cap material Polycarbonate (PC)
＊Rotating shaft material Polyacetal, metal (FRT: POM, FRN: SUS)
＊Gear material Polyacetal (POM)
＊Oil type Silicone oil
유형 프로필 시프트 스퍼 기어
치아 프로파일 인벌류트
모듈 1.0
압력각 20도
치아 수 12
Pitch circle diameter ø12
부록 수정 계수에 0.375를 더한 값
1.속도 특성
A rotary damper's torque varies according to the rotation speed. In general, as shown in the graph to the right, the torque increases as the rotation speed increases, and the torque decreases as the rotation speed decreases. In addition, please note that the starting torque slightly differs from the rated torque.
2. 온도 특성
A rotary damper's torque varies according to the ambient temperature. In addition, as shown in the graph to the right, the torque decreases as the ambient temperature increases, and the torque increases as the ambient temperature decreases. This is because the viscosity of the silicone oil inside the damper varies according to the temperature. When the temperature returns to normal, the torque will return to normal as well.
